Technical Data / Models sonylogo145.jpg (3595 Byte)

Presently, there are four (4) different models of the Sony TECHNOLOOK video microscopes available. The series consists of 2 analog and 2 digital models.

analog series magnification model #
  4x to 40x TW-TL1SP
  10x to 100x TW-TL10SP
digital series magnification model #
  4x to 40x TW-TL5MP
  10x to 100x TW-TL10MP

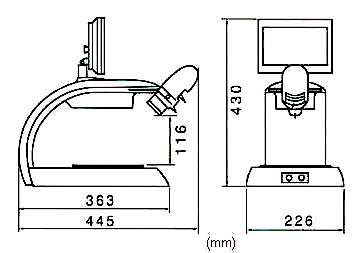

Dimensions (both models)


Specifications



analog series

digital series

Power supply voltage (AC adaptor) 100 V to 240 V AC, 50/60 Hz 100 V to 240 V AC, 50/60 Hz
Power consumption 1,8 A @ 12 V DC 2,3 A @ 12 V DC
Operation temeprature 0° to +40°C 0° to +40°C
Storage temperature -20° to +60°C -20° to +60°C
Mass 6,0 kg incl. supplied accessorioes 6,6 kg incl. supplied accessorioes
Color system PAL PAL
CCD resolution 410,000 pixels 410,000 pixels
Zooming 10x zooming
min. distance for focusing 105 mm
10x zooming
min. distance for focusing 105 mm
Focusing Manual Manual
Iris Manaul Manual
Pointer Laser Laser
Laser Material:
Wavelength:
Emission duration:
Emission method:
AlGaInP
650 nm +9/-5 nm
approx. 7 sec. with 1 sec. intervals
Flashing
AlGaInP
650 nm +9/-5 nm
approx. 7 sec. with 1 sec. intervals
Flashing
Laser output power 200 ± 20 µW 310 ± 20 µW
LCD monitor 7-inch, TFT liquid-crystal display 7-inch, TFT liquid-crystal display
Light system Cold cathode flourescent ringlamp Cold cathode flourescent ringlamp
Lens angle adjustment Approx. 43 to 53 degrees using center control Approx. 43 to 53 degrees using center control
Video input Video input connector, Cinch / RCA type, pinjack, 75 Ohm unbalanced Video input connector, Cinch / RCA type, pinjack, 75 Ohm unbalanced
Video output Video output connector, Cinch / RCA type, pinjack, 75 Ohm unbalanced Video output connector, Cinch / RCA type, pinjack, 75 Ohm unbalanced.
S-video output connector, 4 pin mini-DIN, 75 Ohm unbalanced.
Memory-Stick

---

Insertion slot
Acceptable capacity of Memory-Stick:
4MB, 8MB, 16MB, 32MB, 64MB, 128MB
USB Interface

---

Type B
Supplied accessories AC power cord (1,8 m)
AC adaptor
Table 250 x 75 x 196 mm (w/h/d)
AC power cord (1,8 m)
AC adaptor
Table 250 x 75 x 196 mm (w/h/d)
USB cable (1,5 m)
Memory-Stick (8MB)
Floppy disk: USB driver software
CD-ROM: picture management software
Attached accessories Lens cap
Lens filter
Lens cap
Lens filter
Lithium battery (installed)
